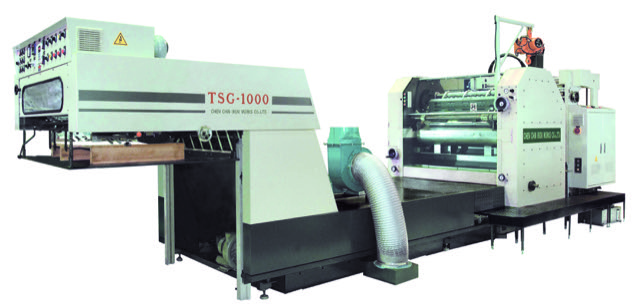

TSG-1000



Chen Chin Iron Works Co., Ltd. researched and developed the printing method of sheet-fed gravure printing machine. The operation is very simple. Utilizing liquid printing ink, it can pass the printing cylinder directly and be printed on paper and plastic material. The printing ink is a kind of solvent and water ingredient. According to different printing elements, the printing effect is different.
This printing method is very advanced with respect to the development of packaging printing, particularly the printing of hardcopy cigarette box and poker card. All of these are subscribed 2 to the high quality & volume color density, which traditional offset printing machine cannot catch up with. And this machine is also a protector of “color difference”.
The printing effect is very outstanding when this printing method is applied to metal ink and pearl ink and the printed products will have brightest luster. This method is applicable to packaging bag, certificate, adhesive label, cover page, bottom page, prototype and name card. It is also suitable for full area and spot coating. The drying system after printing can meet customer‘s demand and the drying time can be extended.



FEAUTURE
Mode: TSG-1000
  1. The machine body is made from high tenacity casting iron; structure is strong, running stably & quiet.
  2. High speed paper feeder with smooth paper feeding.
  3. Stable swing paper transmitting mechanism which is able to transmit the printing sheet correctly.
  4. New patented fast printing plate changing mechanism.
  5. Color process accurately which is suitable for multi color process in printing.
  6. Circulation filtering oil drench type lubrication system which is suitable for long time running.
  7. PLC electronic control system.
  8. Drying system after printing can be extended as per customer’s demand.
Technical Data
Type TSG-1000
Printed area 1000mmX660mm
Max. sheet size 1010mmX670mm
Min. sheet size 540mmX360mm
Cylinder diameter 300mm
Cylinder length 1070mm
Blanket size 1.9x1020mmx850mm

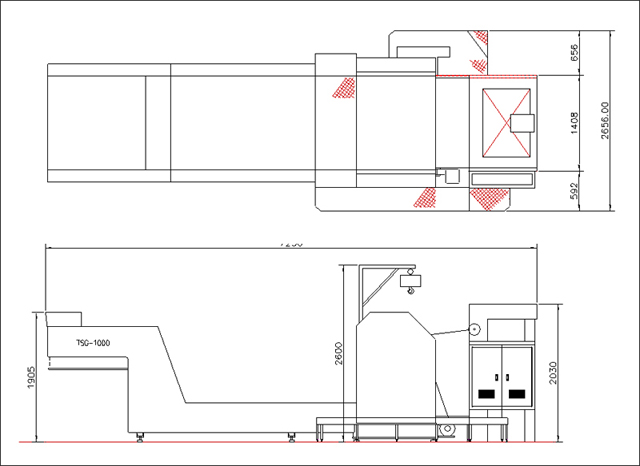

Machine dimensions 7250X2650X2600mm
Machine weight 6800 KG
Max. Machine speed 8000 sheet/hour
Max. output 7200 sheet/hour
Register speed 6000 sheet/hour
Paper weight 100g/m2-400g/m2
Gripper bite 3-6mm
Gripper margin 11-14mm
Feeder pile height 1600mm
Delivery pile height 1150mm
Main power 17.5KW
Dryer heater 20KW
I.R. lamp (Optional) 2.5KWX15=37.5KW
Total power 75KW

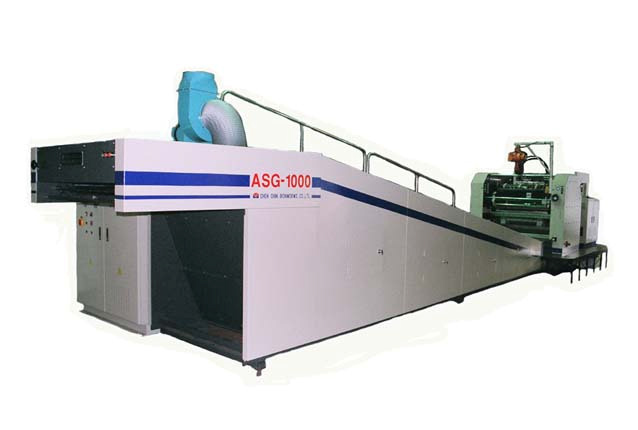

The ASG-1000 Drying system extended ordered from client customized design.

More than CMYK

This Picture is an invitation to discover the unusual design potential of pearl coating effect.

Color Printing and Full Area Printing
( Paper. PVC. PET. Golden/Silver paper board )

UV Full Area Coating and Spot Coating
