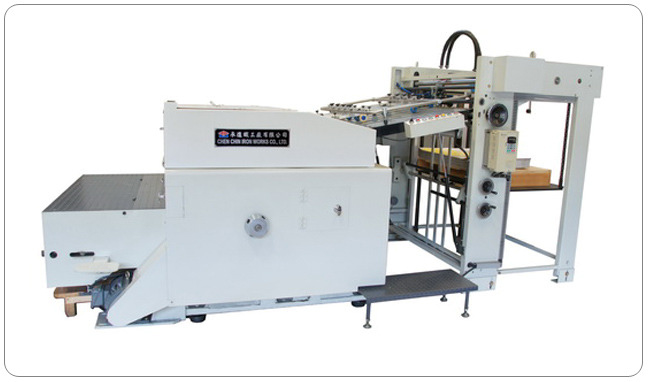

Sheet Plate Embossing Machine
EM-925

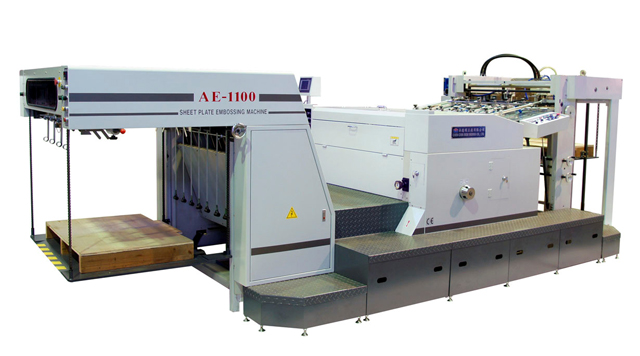

Sheet Plate Embossing Machine
EMH-925

Technical Data
Type AE-925 AE-1100 AE-1300
Embossing area 920mmX695mm 1090mmX790mm 1290X930mm
Max. sheet size 925mmX700mm 1100mmX800mm 1300X940mm
Min. sheet size 400mmX360mm 540mmX360mm 720X400mm
Blanket size 925mmx790mm 1100mm×890mm 1300×1050mm
Dimension of stainless steel sheet: 0.7mmx
925mmx800mm		 0.7mmx
1100mmx900mm		 0.7mmx
1300x1040mm
Plate front to image 43mm 43mm 43mm
Front margin 11mm 11mm 11mm
Paper thickness 0.08 ~0.8mm 0.08 ~0.8mm 0.08 ~1.0mm

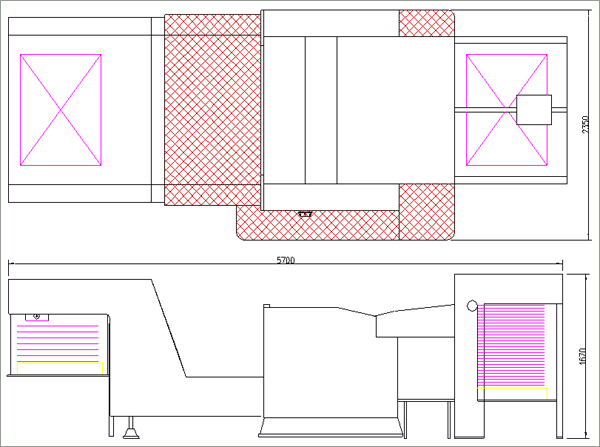

Machine dimensions 5700x2300x1670mm 5700x2500x1670mm 6700x2900x1900
Machine weight 5300KG 6100KG 7500KG
Max. output 4000sheet/hour 4000sheet/hour 3000sheet/hour
Feeder pile height 1200mm 1200mm 1350mm
Delivery pile height 1200mm 1200mm 1350mm
Main electric force 12KW 14.5KW 17KW
Heater power 18KW 20KW 21KW
Total electricity required 30KW 34.5KW 38KW

Type EM-925
Embossing area 920mmX695mm
Max. sheet size 925mmX700mm
Min. sheet size 400mmX360mm
Blanket size 925mmx790mm
Dimension of stainless steel sheet: 0.5-0.7mmx
925mmx800mm
Plate front to image 45mm
Front margin 11mm
Paper thickness 0.08 ~0.5mm

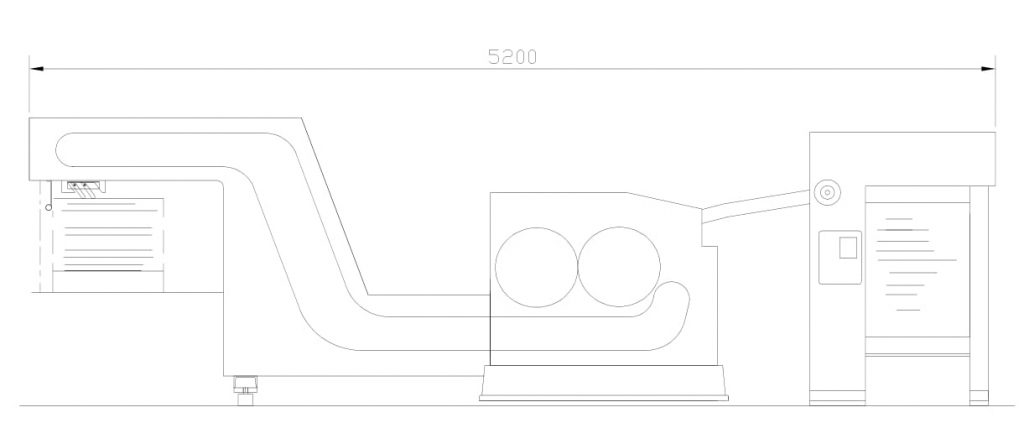

Machine dimensions 3600x2100x1550mm
Machine weight 4000KG
Max. output 4000sheet/hour
Feeder pile height 1000mm
Delivery pile height 50mm
Main electric force 11KW
Heater power 18KW
Total electricity required 29KW


Construction feature
  1. The machine body is made from high tenacity casting iron; structure is strong, running stably & quiet.
  2. Stream type sheet feeder.
  3. High rigidness and loading for roller.
  4. Roller with pressure evenly, to reduce wearing of rubber blanket.
  5. Easy to change the blanket.
  6. Patent multipoint temperature control.
  7. The working temperature could reach 200°C.
  8. Can choose Human machine interface screen – Temperature control(With memory function and screen discoloration).
  9. Specially designed heater can withstand prolonged use at high temperatures, almost no maintenance.
  10. Paper jam emergent deviates device.(Only AE type).
  11. Converter Speed Adjust Motor.
  12. Can choose Lower table for delivery pile height, machine saves room space occupied.(EM-925).
  13. High temperature cylinder auxiliary cooling system.(Only AE type) (Option).
  14. Auto oiling lubrication device : can be set oiling time and intermittence, with low oil alarm device..
  15. Machine cover with high temperature stoving varnish.
  16. Air brush assist the stacker systems. (Option).
  17. Lubricating oil cooling recycle system for machine wall.(Option).

Automatic Sheet Plate Embossing Machine- Is our company continuously innovative research, with more latest patented of the products, the new generation of machines, in addition to strengthening the overall strength of the external structure and part of the structure using special materials, operate at high temperature and pressure so that the more quiet and stable, and its multi-point type electronic temperature control, using a single point of independent automatic control, energy-saving and clean comply with environmental requirements, and with the paper texture and different shades arbitrarily adjusted quickly and accurately reach the desired temperature, and the process can be added at any time due to the loss of imprinting temperature, our specially designed heater can withstand prolonged use at high temperatures, almost no maintenance.
The pressure cylinder bearing seat picks the special material quality, can maintain along with the temperature height the runs is stable, suits the long time to running. Automatic Embossing Machine with single plate, substitutes metal plate for traditional Embossing cylinder, which have plate making easier as well as price of plate more competitive.

The AE model machine used in Ten-point temperature electric embossing roller to the principle of thermal expansion and contraction make the drum deformation to achieve pressure uniform for clear embossing texture. And through simple touch screen user interface, one key to control multi-point temperature operation, reduce the difficulty obtained; and has a temperature memory, multi-point temperature control and independent features such as screen discoloration reminder.

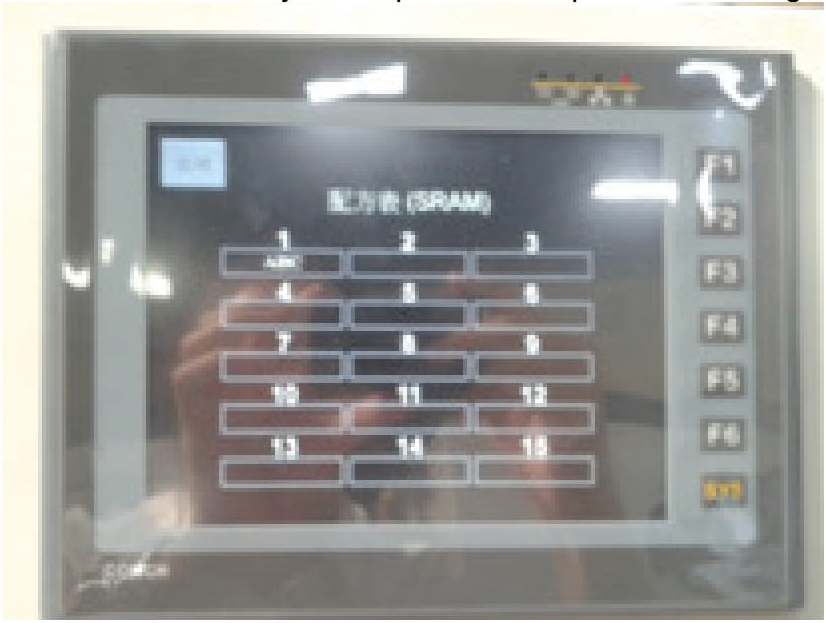

Ten-point temperature control and screen discoloration reminder

Touch screen user interface, one key to control multi-point temperature operation (70°-200°)

50 sets of memory for special temperature setting

Because the embossing is carry out high temperature and high pressure conditions, we have designed the use of lubricating oil to cool and recycle, so that the machine can maintain a lot of lubrication in the long run to reduce wear.

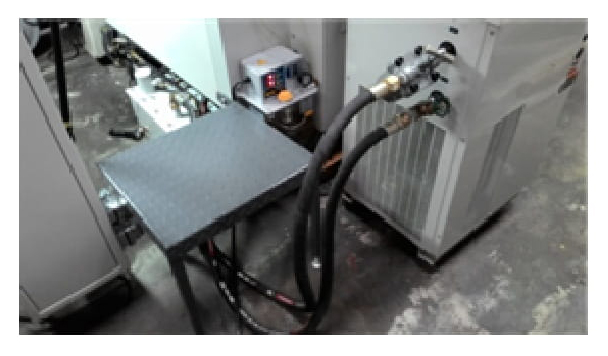

Lubricating oil cooling recycle system

The principle is we install metal pattern plate on the surface of the printing cylinder, then have it heated and pressed to make the pattern shown on paper, making reflex agleam light and various patterns.
Without ink, the unique pattern pressed machine can print papers with special lines, such as logic light lines, art paper lines, etc. It is widely applied to cigarette case, wine case, food package, envelopes, paper bags, art paper, cards and printed matter of cosmetics, medicines, hanging picture, calendar, advertisement as well as Customized patterns. (embossing material: Paper, PVC, POPP, PP, PET).

Stainless steel embossing plate

Logical Light Embossment designing

Deep Embossing

PS. We are offer for customers OEM plate, and provides a full range of software and hardware output.
