FEAUTURE

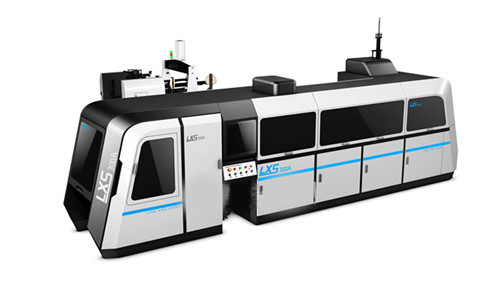

Model: LS-300A

  • Widely suitable for all kinds of rigid box making
  • Fault diagnosis function
  • Automatic paper feeding and automatic cardboard feeding
  • High-accuracy mechanical paper feeding system
  • Equipped with Panasonic servo motor controlling system
  • It adopts camera assist for positioning and YAMAHA robotic arm for feeding the box(the tolerance is within 0.1mm)
  • It adopts new gluing system with temperature controlling and glue cycling function
  • Accurate robotic arm is applied for holding the four corners of the box
  • It adopts accurate slide seat for edge folding, the length of edge folding is adjustable
  • Constant temperature control system is applied on this machine (Optional)
  • It adopts high-definition camera for accurate positioning

Technical Data

Paper size(max) L800 x W600
Paper size(min) L180 x W100
Box size(max) L430*W350*H100mm
Box size(min) L80*W60*H20
Paper thickness 80-200g/㎡
Cardboard thickness 0.5-3mm
Edge folding size 10-100mm
Tucking in depth 15-80mm
Air pressure 20L/min 0.8MPa
Working speed ≤ 30 pcs/min
Motor power 14kw/380v 3 phase
Heating power 4kw
Machine weight 4000kg
Machine dimension L6800*W3800*H3000mm
