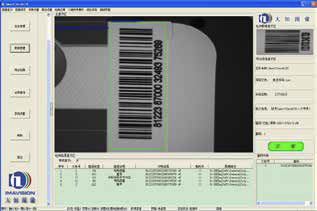

The system acquires images of 2D codes with high resolution industrial cameras and performs code reading and validating to detect quality problems such as repetition, absence, errors, missing elements of printed 2D codes. When a defect is detected, the sound and light alert is provided to users and the NG signal is simultaneously sent to ejecting equipments to complete the wastes collection, which can avoid quality accidents occurred in 2D data printing.



FEAUTURE
Model: DH-VID100
  • Real-time monitoring and inspecting on variable information
  • Real-time alarming, wastes rejecting and displaying of inspection data
  • Inspection data stored in real-time for future analysis
  • Supervision code grades inspection to reject low grade barcode

Technical Data

Specifications DH-JM100 (small-format inspection system)
Maximum inspection speed 300m/min
Number of 2D codes checked 2codes
Inspection contents Variable codes validating, appearance quality checking
Defects in 2D codes validating Repetition, absence, errors of printed codes
Code types QR Code, PDF417, Data Matrix ECC 200



Specifications DH-MZX1100 (large-format inspection system )
Maximum inspection speed 100m/min (7000sheets/hour)
Number of 2D codes checked 60codes
Inspection contents Variable codes validating, appearance quality checking
Defects in 2D codes validating Repetition, absence, errors of printed codes
Code types QR Code, PDF417, Data Matrix ECC 200
