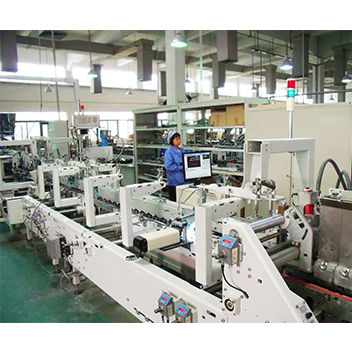

DH-FH100 is an inline inspection system working together with
folding-gluing machines to read bar code on every pack to find out the
confusion situation where other types of color packs are mixed up with
the current type. As soon as a different type of pack is detected, the
system will alert users with sound and light, stop the folding-gluing
machine, and report the identification code and amount of the wrong type
packs. The system can be mounted on any folding-gluing machine to
guarantee that packs-confusion accidents will not happen.
| FEAUTURE |
Model:
- Real time monitoring bar codes, reading identification code on every pack’s body and comparing it with the specified ID
- When pack confusion happens, system can provide sound & light alert, stop the folding-gluing machine, and display the type identification and the amount of the wrong packs
- Real-time storing inspection results into database for further data analysis and quality management
- Support for extensions to satisfy the inspecting task where a certain type pack having multiple bar codes
|
Technical Data
| Specifications |
DH-FH100 |
| Inspecting area size |
60mm×40mm |
| Bar code types |
Code 128,Code 39,EAN 8, EAN13, etc |
| Minimum bar code size (L×W) |
20mm×5mm |
| Maximum inspection speed |
260m/min (80000 bar codes per hour) |
| Installation space |
300mm×300mm×500mm |
| Defects-handling methods |
Sound and light alert, stopping machine signal |
| Total power |
3kW |
| Working temperature |
5℃ -35℃ |
| Relative humidity |
10-80%RH |
